Features:

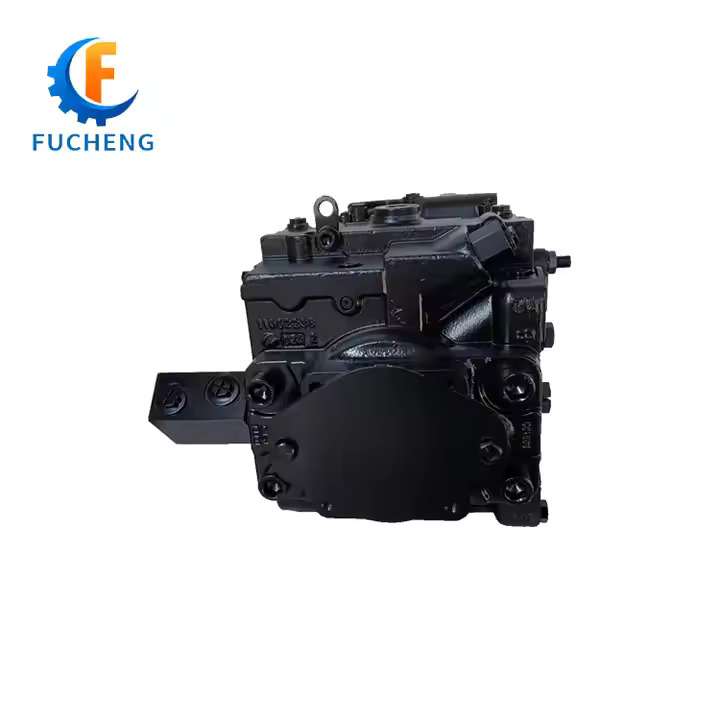

---Series 90 axial piston fixed and variable displacement motors are of swashplate design with
fixed or variable displacement, and are intended for closed circuit applications.
---The output speed is proportional to the flow rate of the input fluid, and is inversely proportional to
the motor displacement.
---The output torque is proportional to the pressure difference between the high and low pressure
sides of the fluid circuit, and the motor displacement.
---The direction of rotation of the motor output shaft depends upon which port the fluid enters the
motor.
|
Size
|
042
|
055
|
075
|
100
|
|
Displacement(CC/rev)
|
42
|
55
|
75
|
100
|
|
Flow at rated speed (L/min)
|
176
|
215
|
270
|
330
|
|
Shafts
|
Splined, and tapered shafts available
|
