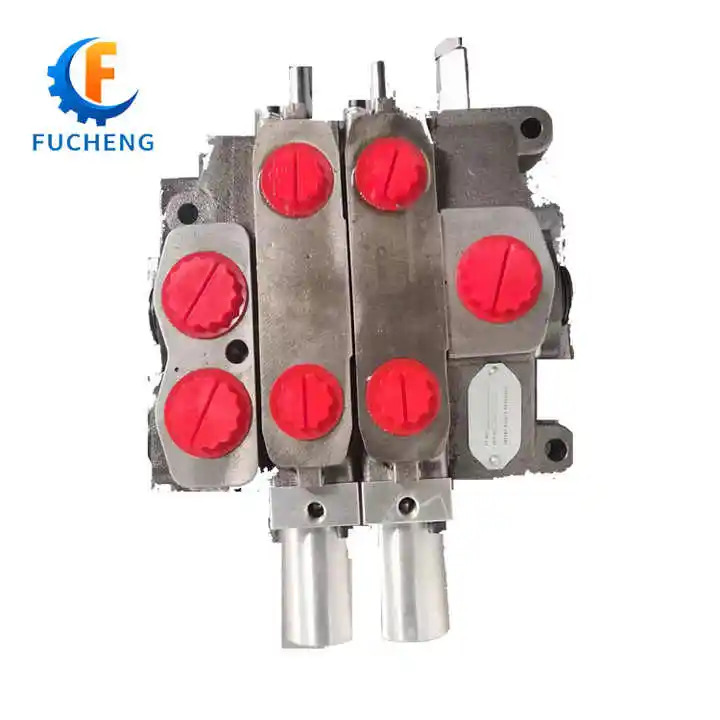

Commercial's VA and VG model valves are contemporary versions of our well-proven A20/A35 units which have provided reliable control of fluid power for over 20 years. The VG models are cast from compacted graphite, a high strength iron alloy that allows us to rate the valves to 3500 psi. VA models are cast from gray iron and are rated at 2500 psi.
|
Nominal pressure (bar)
|
Nominal size (mm)
|
Nominal flow (L/min)
|
|
200
|
20
|
160
|
Internal check valve: each valve section has an internal check valve to prevent the oil backflow.
Internal overflow valve: the inside of oil inlet section is equipped with a pilot-operated overflow valve to control the system
pressure.
Oil circuit type: it can be implemented parallel type, series type or series parallel combination type.
Auxiliary valve: according to the requirement, overload valve and oil filling valve can be added at both ends of valve section.
Structure type: sectional valve, any 1 to 8 sections may combine upon customer’s requirement.
Spool function at neutral position: A, Z, O, Y, etc.
