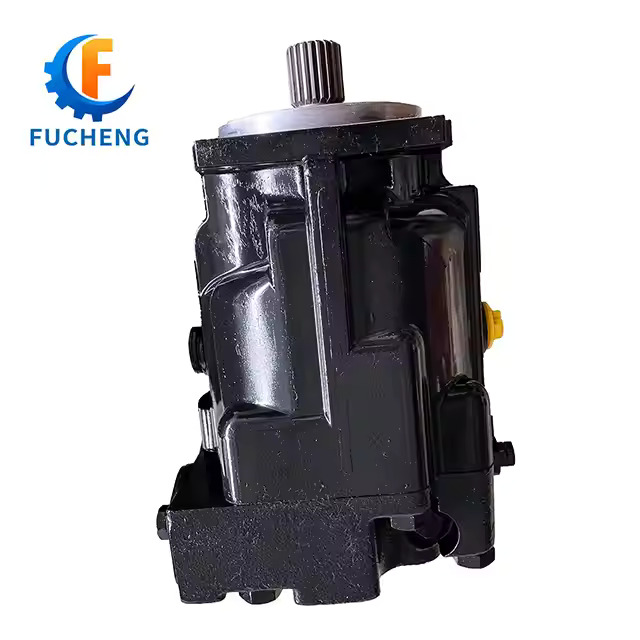

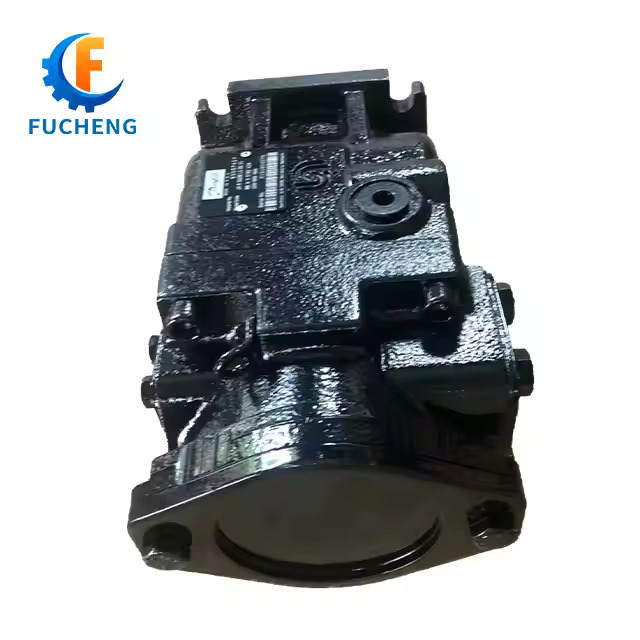

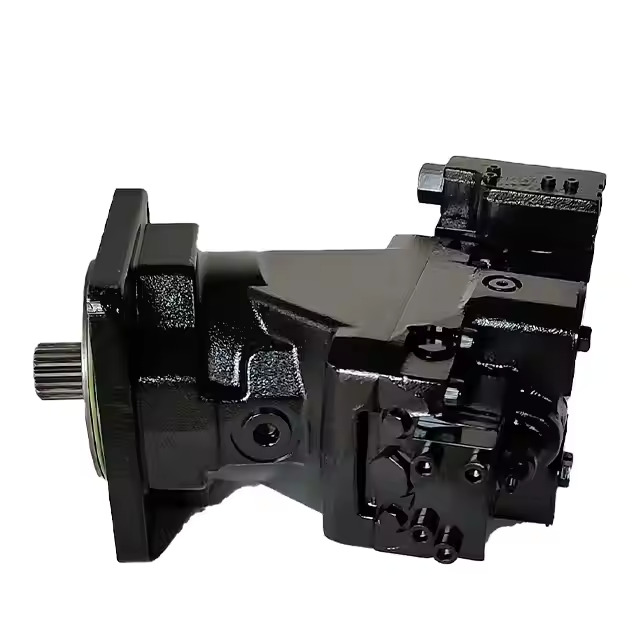

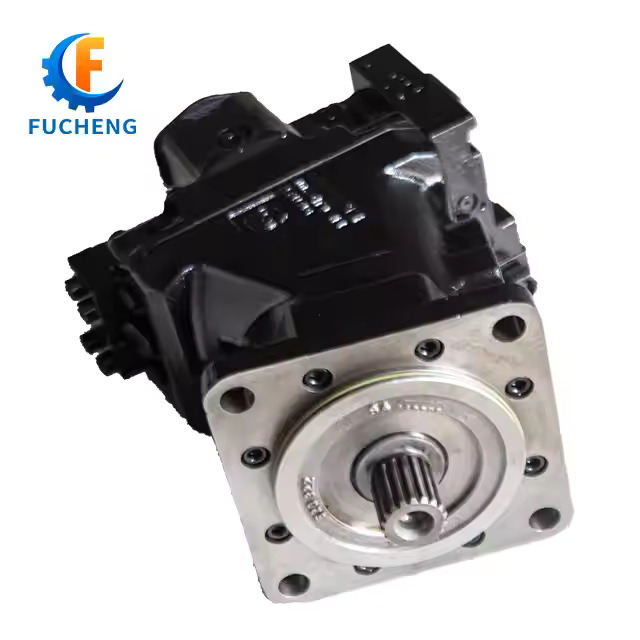

Series 51 Variable Displacement Motors are bent axis design units, incorporating spherical pistons.
These motors are designed primarily to be combined with other products in closed circuit systems to transfer and control hydraulic power.
Acompletefamilyof controls and regulatorsis availableto fulfill the requirements of a wide range of applications.
Motors equipped with controls normally start at maximum displacement. This provides maximum starting torque (high acceleration).
The controls may utilize externally orinternally supplied servo pressure. They may be overridden by a pressure compensator which functions when the motor is op-erating in motor and pump modes. A defeat option is available to disable the pressure compensator override when the motor is running in pump mode.
The pressure compensator option features a low pres-sure rise( short ramp) to provide optimal power utiliza-tion throughout the entire displacement range of the motor. The pressure compensator is also available as a stand-alone regulator.
